PROJECT 1 FORM AND FUNCTION
In this project you can see the concept of form and function incorporated into a bridge of my design. We do this by incopoarting house hold items as movement and trying to figure out how we can make it work and function to the bridge.

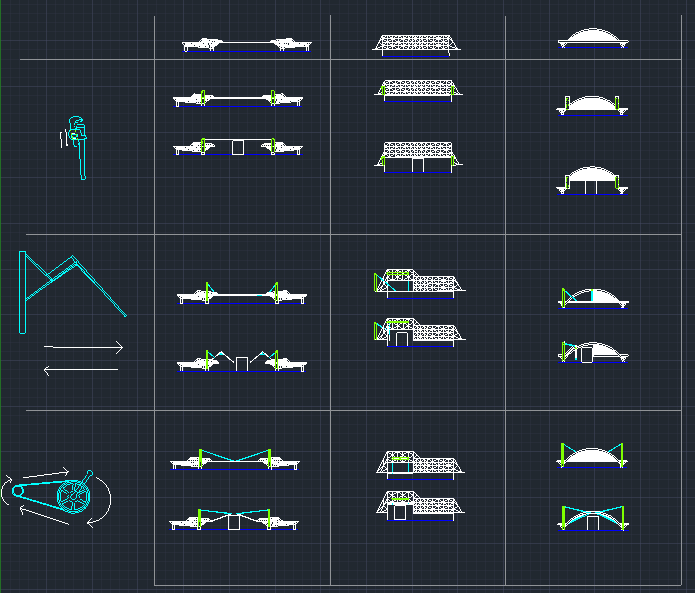

3x3 conceptional
Here you can see how I added the movement of common house hold item into different types of bridge. With this in mind , one can see how my mind started to make these movement into something is possible to do and make standard bridges into draw bridges based of these movement.
Final Choice

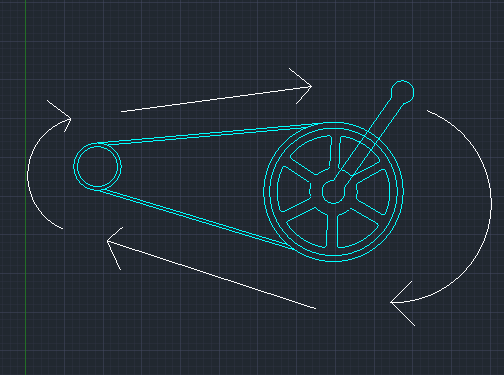

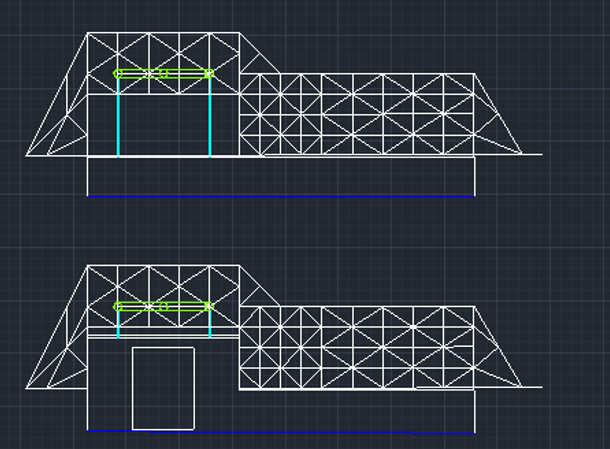

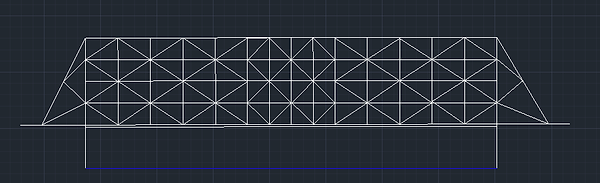

After some thinking I was able to make a final concept of the bridge I wanted to bring to life. It is a combination of a standard truss bridge and the motion of of bike gear in order for the draw bridge to move.

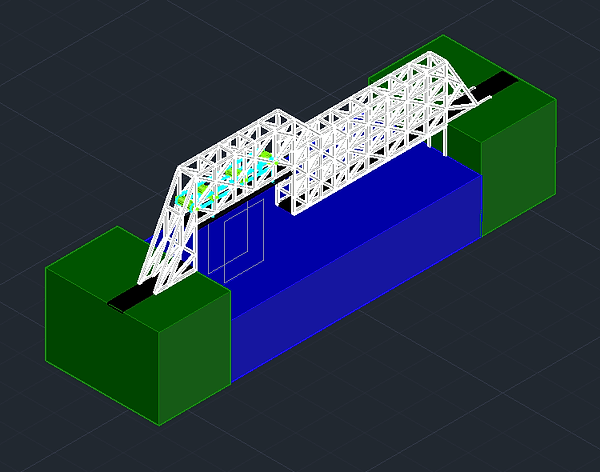

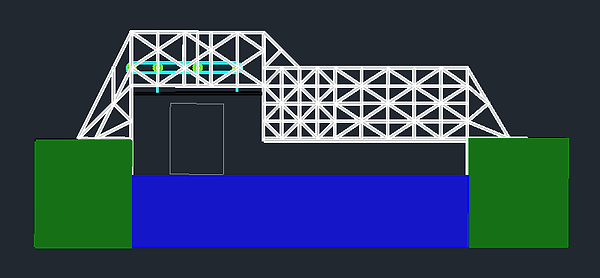

3D Model
After making a 2D model it was time to make a 3D model of my idea.

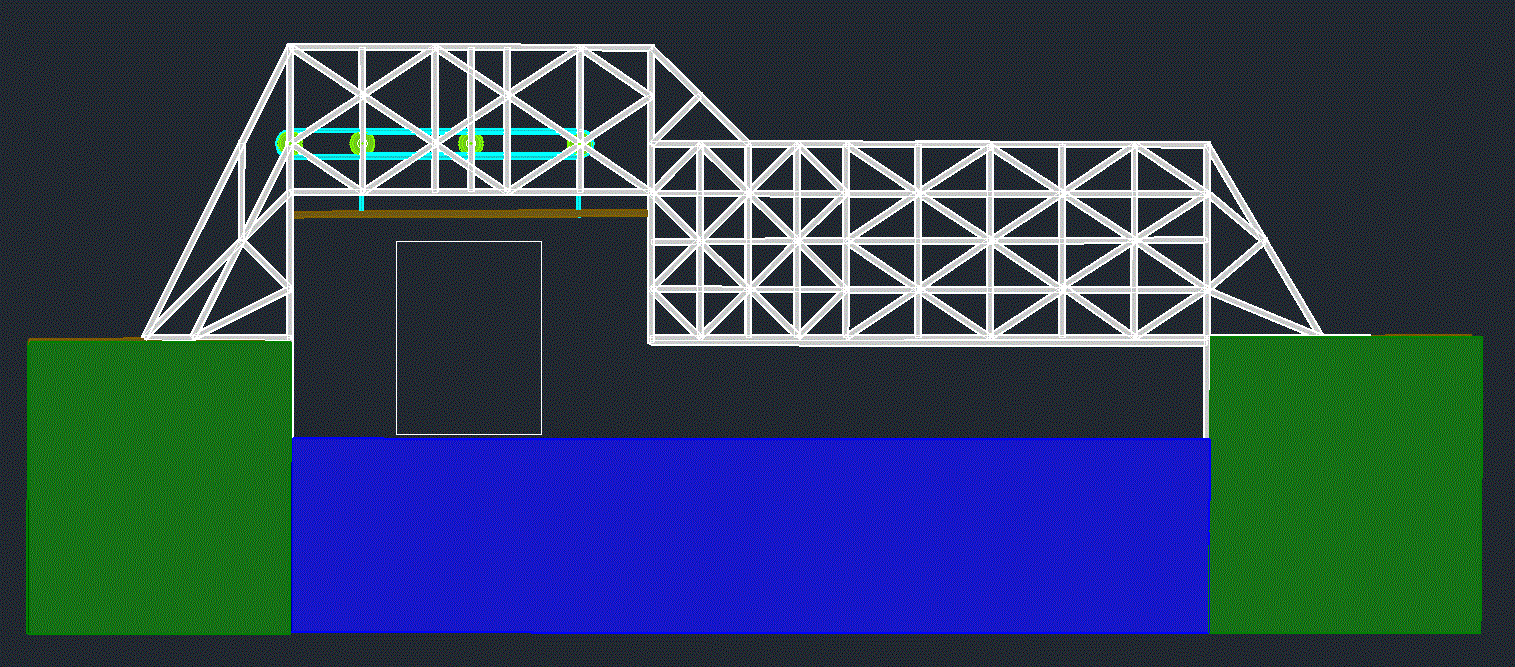

Final Result
This is the final product that I have came out with. The standard truss bridge was turn into a draw bridge of my vision that is functional.
